ELECSSOL is one of the pioneers to manufacture All in one solar street light in India. This product is tested and approved as per MNRE guidelines.

FEATURES AND ADVANTAGES:

SMART MPPT CONTROLLER
Working of All In One Solar LED Street Light:
MPPT is high efficient rate for solar
charge controller which independent
design by ELECSSOL. It generates
more power especially during cloudy
and rainy season.
MOTION DETECTION
ELECSSOL built in passive infrared
motion detection system that
automatically regulates the light power
output full bright ness 100% to dim mode
33% to increase battery autonomy.
LED LIGHT
ELECSSOL LED luminaries delivers the
best in class lumen efficacy. Light gives
the maximum light output at lower
wattage.
ADJUSTABLE MOUNTING BRACKET
Adjustable mounting bracket helps the
solar panel positioned a best angle to
fully absorb sunshine in different
longitude and latitude areas.
SOLAR PV MODULE
High efficient Mono / Multi Solar
modules are used for longer durability.
ELECSSOL solar panels are certified by
MNRE, TUV IEC61215, 61730.
NO CABLES REQUIRED
You do not need any cables for any
connection to get grid power because
its solar powered and user friendly
products for easy installation.
BLUETOOTH REMOTE CONTOL
ELECSSOL offers Optional remote control
which enables to manage on/off,
dimming, and health check of LED fitting.
LITHIUM ION PHOSPHATE BATTERY
& BATTERY MANAGEMENT SYSTEM
ELECSSOL adopt an exclusive technology
of lion battery management program,
enabling more long and endurable
lifespan of battery up to 5 years.

Note : Also Available with (LiFePo4) Lithium Ferro Phosphate Battery.

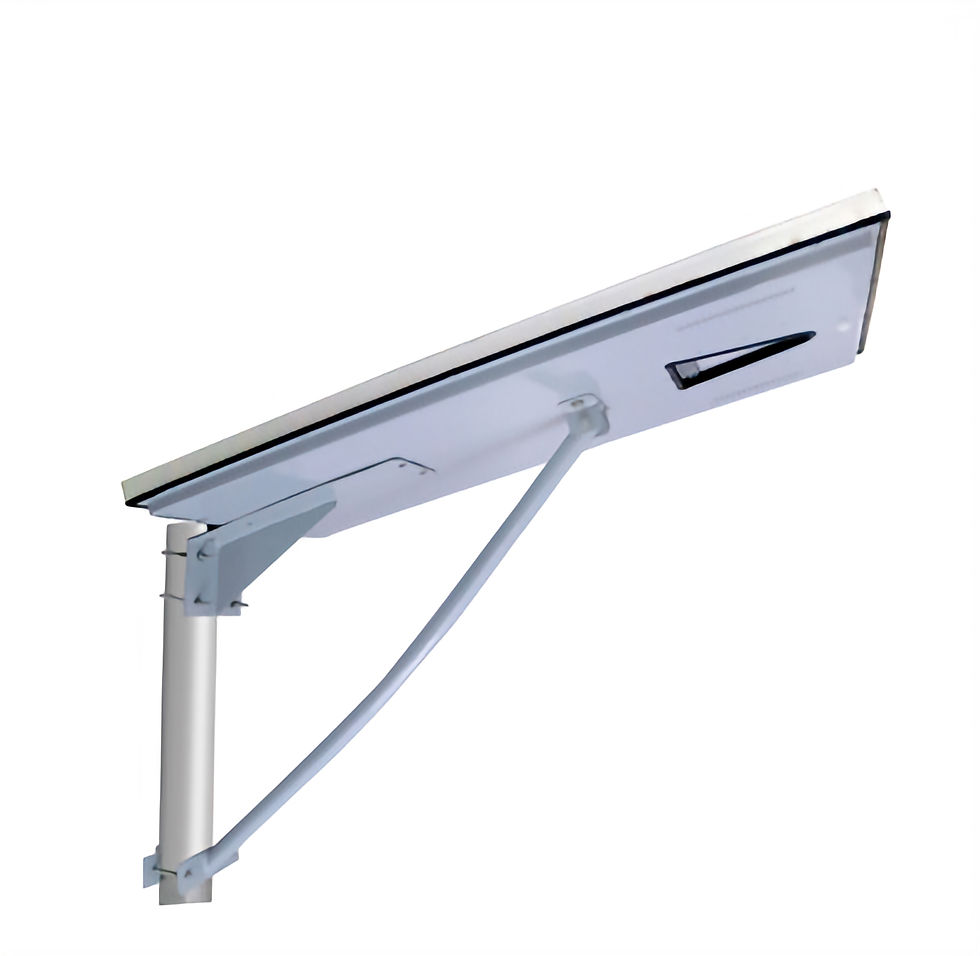

All in One Solar Street Light

₹14,232.00

Taxes Included

BULK BUY - Extra 10% on 5+ units

Quantity

Technical Specifications:

MODEL NO.	9W LED	12W LED	15W LED
PHYSIC-AL PARAM- ETERS
Power of PV module (W)	40Wp	40Wp	40Wp
Lithium Battery Capacity ( 1 Day - 1.5 Day )	Li-ion 11.1V/ 11AH	Li-ion 11.1V/ 13AH	Li-ion 11.1V/ 15AH
Lithium Battery Capacity ( 2Days )	Li-ion 11.1V/ 15.4AH	Li-ion 11.1V/ 19.8AH	Li-ion 11.1V/ 23.4AH
PIR Sensor	Provided	Provided	Provided
Net Weight of Products (Kg)	9kg	10kg	12kg
Dimens-ions of Product (mm)	710 (L) x 517(W) x 43(H)	710(L) x 517(W) x 43(H)	710(L) x 517(W) x 43(H)
DRIVER PARAM-ETERS
Charge Control-ler Type	PWM	PWM	PWM
LED Driver Efficien-cy	>90%	>90%	>90%
LIGHT PARAM-ETERS
Colour Temper-ature	5500K-6500K	5500K-6500K	5500K-6500K
Typical Lumino-us Flux (Lm)	900	1200	1500
Light backup Time ( 1Day - 1.5 Day )	17Hr-18Hr	16Hr-17Hr	14Hr-15Hr
Light backup Time ( 2 Day )	23Hr-24Hr	23Hr-24Hr	23Hr-24Hr
PACKING PARAM-ETERS
Dimens-ion Of carton	920(L) X 580 (W) X 150(H)	920(L) X 580 (W) X 150(H)	920(L) X 580 (W) X 150(H)
Gross Weight of Product (Kg)	12.6kg	13.4kg	14.5kg
MOUNT-ING RECO-MMEND -ATIONS
Top of Pole OD (mm)	70mm-76mm	70mm-76mm	70mm-76mm
Recom-mended Installat-ion Height (Mtr)	5Mtr	5Mtr	5Mtr
MODEL NO.	18W LED	20W LED	25W LED
PHYSIC-AL PARAM- ETERS
Power of PV module (W)	50Wp	60Wp	75Wp

Lithium Battery Capacity ( 1 Day - 1.5 Day )	Li-ion 11.1V/ 19.8AH	Li-ion 11.1V/ 23.4AH	Li-ion 11.1V/ 26AH
Lithium Battery Capacity ( 2Days )	Li-ion 11.1V/ 28.6AH	Li-ion 11.1V/ 33AH	Li-ion 11.1V/ 39AH
PIR Sensor	Provided	Provided	Provided
Net Weight of Products (Kg)	13.5kg	15kg	19kg
Dimens-ions of Product (mm)	710(L) x 517(W) x 43(H)	900(L) x 560(W) x 43(H)	1050(L) x 560(W) x 43(H)
DRIVER PARAM-ETERS
Charge Control-ler Type	PWM	PWM	PWM
LED Driver Efficien-cy	>90%	>90%	>90%
LIGHT PARAM-ETERS
Colour Temper-ature	5500K-6500K	5500K-6500K	5500K-6500K
Typical Lumino-us Flux (Lm)	1800	2000	2500
Light backup Time ( 1Day - 1.5 Day )	16Hr-17Hr	17Hr-18Hr	15Hr-16Hr
Light backup Time ( 2 Day )	23Hr-24Hr	23Hr-24Hr	23Hr-24Hr
PACKING PARAM-ETERS
Dimens-ion Of carton	920(L) X 580(W) X 150(H)	1120(L) X 640(W) X 150(H)	1250(L)x 640(W) x 150(H)
Gross Weight of Product (Kg)	16.8kg	20.8kg	23kg
MOUNT-ING RECO-MMEND -ATIONS
Top of Pole OD (mm)	70mm-76mm	70mm-76mm	70mm-76mm
Recom-mended Installat-ion Height (Mtr)	5Mtr-6Mtr	5Mtr-6Mtr	6Mtr

MODEL NO.	30W LED	40W LED	50W LED
PHYSIC-AL PARAM- ETERS
Power of PV module (W)	75Wp	100Wp	120Wp
Lithium Battery Capacity ( 1 Day - 1.5 Day )	Li-ion 11.1V/ 32AH	Li-ion 11.1V/ 44.2AH	Li-ion 11.1V/ 52AH
Lithium Battery Capacity ( 2Days )	Li-ion 11.1V/ 48.4AH	Li-ion 11.1V/ 63.8AH	Li-ion 11.1V/ 85.8AH
PIR Sensor	Provided	Provided	Provided
Net Weight of Products (Kg)	22kg	25kg	27.5kg
Dimens-ions of Product (mm)	1050(L)x 560(W) x 43(H)	1350(L)x 560 (W)x 43(H)	1350(L)x 560(W) x 43(H)
DRIVER PARAM-ETERS
Charge Control-ler Type	PWM/MPPT	PWM/MPPT	PWM/MPPT
LED Driver Efficien-cy	>90%	>90%	>90%
LIGHT PARAM-ETERS
Colour Temper-ature	5700K	5700K	5700K
Typical Lumino-us Flux (Lm)	3750	5000	6250
Light backup Time ( 1Day - 1.5 Day )	15Hr-16Hr	15Hr-16Hr	15Hr-16Hr
Light backup Time ( 2 Day )	23Hr-24Hr	23Hr-24Hr	23Hr-24Hr
PACKING PARAM-ETERS
Dimens-ion Of carton	1250(L)x 640(W) x 150(H)	1545(L)X 650(W)X 150(H)	1545(L)X 650(W)X 150(H)
Gross Weight of Product (Kg)	25kg	28kg	30kg
MOUNT-ING RECO-MMEND -ATIONS
Top of Pole OD (mm)	70mm-76mm	70mm-76mm	70mm-76mm
Recom-mended Installat-ion Height (Mtr)	6Mtr	6Mtr-8Mtr	6Mtr-8Mtr

MODEL NO.	60W LED
PHYSIC-AL PARAM- ETERS
Power of PV module (W)	150Wp
Lithium Battery Capacity ( 1 Day - 1.5 Day )	Li-ion 11.1V/ 63.8AH
Lithium Battery Capacity ( 2Days )	Li-ion 11.1V/ 96.2AH
PIR Sensor	Provided
Net Weight of Products (Kg)	32kg
Dimens-ions of Product (mm)	1710(L)x 560(W) x 43(H)
DRIVER PARAM-ETERS
Charge Control-ler Type	PWM/MPPT
LED Driver Efficien-cy	>90%
LIGHT PARAM-ETERS
Colour Temper-ature	5700K
Typical Lumino-us Flux (Lm)	7500
Light backup Time ( 1Day - 1.5 Day )	15Hr-16Hr
Light backup Time ( 2 Day )	23Hr-24Hr
PACKING PARAM-ETERS
Dimens-ion Of carton	1905(L)X 650(W)X 150(H)
Gross Weight of Product (Kg)	34.3kg
MOUNT-ING RECO-MMEND -ATIONS
Top of Pole OD (mm)	70mm-76mm
Recom-mended Installat-ion Height (Mtr)	6Mtr-8Mtr

PROTECTION PROVIDED:

All In One Protections --

All In One Operation --

Light will glow in full bright mode for first 4Hrs
After 4Hrs. Light will Dim to 33% power and motion sensor will activate for detection of motion
If any motion is detected in 12M area around the Light, then it will glow in full mode for 2min
After that it will again come to 33% Power.
